ScatPump® Submersible Slurry Pumps
Heavy duty submersible sludge/slurry pump with high chrome impeller & agitator. Flows available up to 6m3/min and heads up to 32 m.
Models: 1.5 to 2.2kW (Mini) and 4 to 22kw.

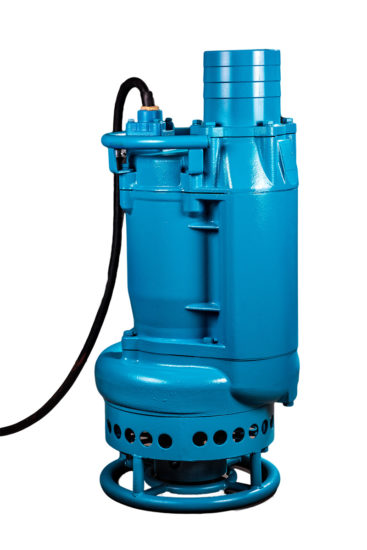

The ScatPump® is an extremely durable, top-discharge pump with a mechanical agitator and wide clearances. The pump has a straight path from intake to discharge, so the ScatPump® uses the pumped liquid to cool the motor.
The pump does not have an elbow joint like a side-discharge pump, so it has fewer surfaces that can wear or potentially fail, and can fit into tighter areas. The ScatPump®’s agitator will keep particles suspended in the slurry while large, 30mm holes in the strainer have allowed virtually all of the solids to pass through.
The pumping components of the ScatPump®, notably the agitator, impeller and wear plate are constructed of high-chrome iron, meaning the ScatPump® is designed to be a solid workhorse in any condition.
The ScatPump® is available in 4kw to 22kw and well suited for popular areas such as;
- Mill Sumps
- Fly Ash
- Residue Ponds
- Conveyor Sumps
- Wash down Sumps
- Stockpile Runoff Sumps

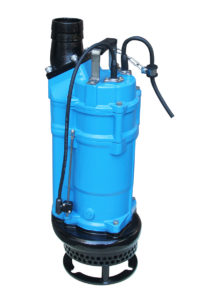

The ScatPump® is also available in a smaller version for those places where a slurry pump is required but the areas are too tight, introducing the “MiniScat”. This model is available in a 1.5kw and a 2.2kw unit. The MiniScat also comes equipped with Smarts. The Smarts include incorrect direction detection, level sensor which shuts off the pump and restarts once levels return, thermal shutdowns with a temperature adjuster to restart.
Combined with our high level of service and expertise, this makes PumpEng® the natural choice for all your submersible pump requirements.
PumpEng® through consultation with the Australian Mining Industry now introduces its new range of Submersible Slurry Pumps the “ScatPump®”.
DEVELOPED WITH THE AUSTRALIAN MINING INDUSTRY FOR THE CONDITIONS ENCOUNTERED WITHIN THE AUSTRALIAN MINING INDUSTRY
- Mill scat sumps
- Harbour construction
- Ash transfer
- Silt removal
- Sand and gravel pumping
- Barge and tank clean out
- Lime slurry
- Coal runoff sumps
- Food waste
- General slurry duties
The ScatPump® has been designed to efficiently pump contaminated fluids containing solids in suspension to a maximum of 70% by weight.
A heavy duty HICR agitator helps keeps solids in suspension.
The ScatPump® series are small, slimline and lighter than a Vertical Cantilever Sump Pump thereby offering cost reductions & savings in man-hours, repairs and transportation.
ScatPump® Model Overview
|Model||Kw||Discharge||Phase||Solids Passage in mm||Max Head in m||Max Flow m3/min||Max Diameter mm||Height mm||Weight kg|
ScatPump® Motor Specifications
|Type||Submersible Continuous Duty|
|Insulation Class||F Class|
|Motor Power Details||415v, 3 phase, 50 cycle|
|Protector||Auto-cut (over-heat & over-load)|
|Max Liquid Temp||Fluid at 40°C|
|Materials||Jacket: Ductile iron 35-40 Hrc|
Shaft: 420 stainless steel
Cable: 10m Standard
ScatPump® Pump Specifications
|Impeller||Semi-open impeller, HICR hardened 55- 60 HRC|
|Wear Plate||HICR hardened to 55-60 HRC|
|Bearing||Heavy duty bearings grease lubricated|
|Agitator||Replaceable, HICR hardened to 55-60 HRC|
|Volute Casing||Ductile iron hardened to 35-40 HRC|
ScatPump® Unique Design Features
Submersible cable with epoxy fill to raise moisture resistance. Sizes, styles and length are available to meet your specific requirements.
Double silicon carbide mechanical seals in an oil bath offering abrasion resistance and snore running capability. Wear Protection ring is also fitted.
Windings are class F/H and incorporate an overheat and overload protection.
Top discharge, self venting design means no more airlocks. Jacketed design ensures motor is always cooled even when pumping within inches of the bottom.
Semi Open, HICR hardened impeller resists abrasion and allows the pumping of large diameter solids.
The HICR agitator helps to keep solids in suspension thereby minimising the issue where the water is pumped but the solids are left in the sump.
A HICR wear plate to reduce abrasion. Can be adjusted externally to keep efficiency at a maximum.
Replaceable stainless steel shaft sleeve to protect the shaft.
ScatPump® submersible pumps are smaller, lighter, easier to repair and offer substantial operational savings when compared to cantilever sump pumps
