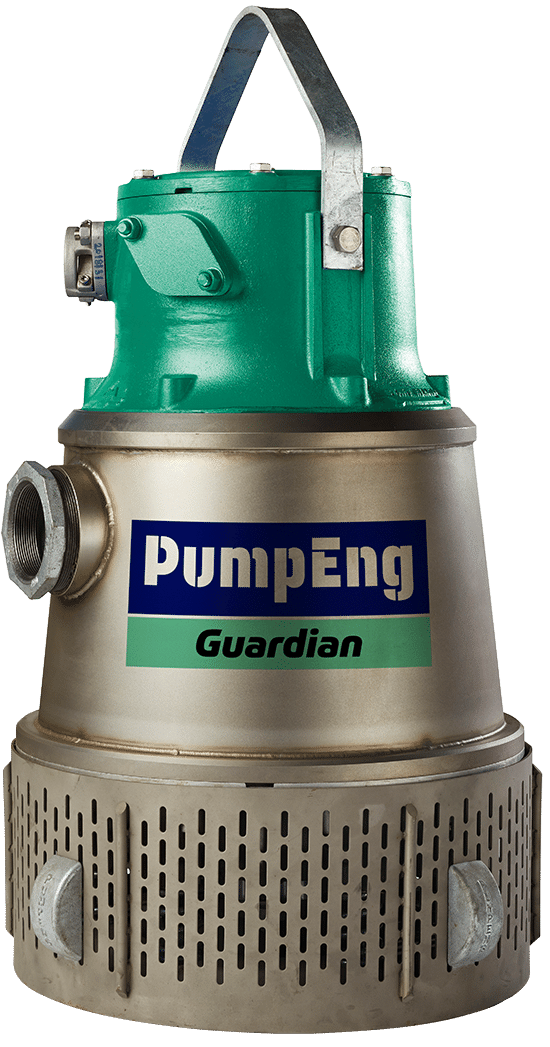

Guardian® Submersible Dewatering Pumps

Tougher pump for harsh underground environments

When pumping tramp and solids is unavoidable use hard metal.
Designed for longer life.

Enquiry

Brochure

Benefits of Guardian® for Mining Operations

Performance

Increase mine performance, productivity and profit by reducing breakdowns and delays.

Safety

Reduce workplace hazards by reducing the number of breakdowns.

Cost

Reduce equipment lifecycle cost by increasing total pump life.

Models

5 kW

8 kW

20 kW

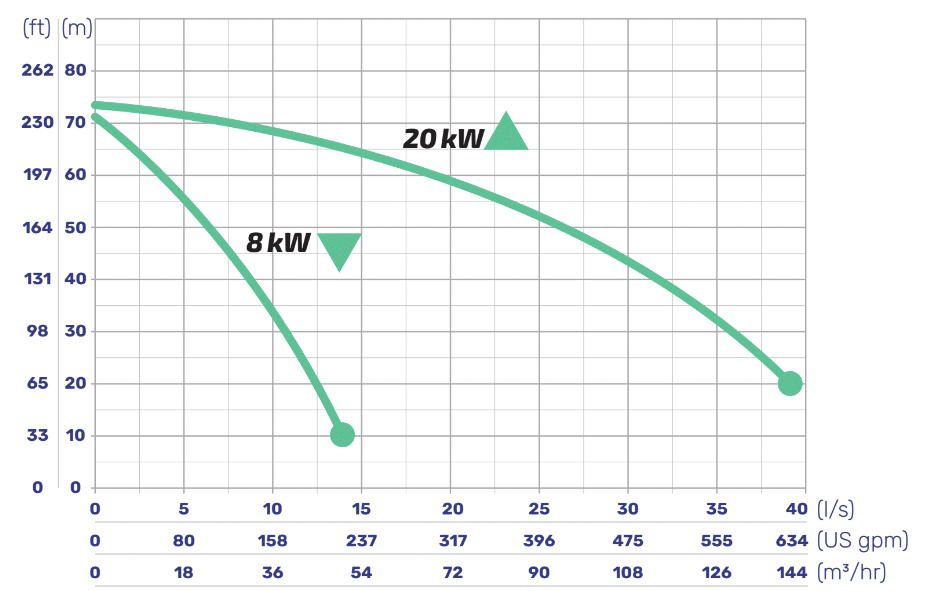

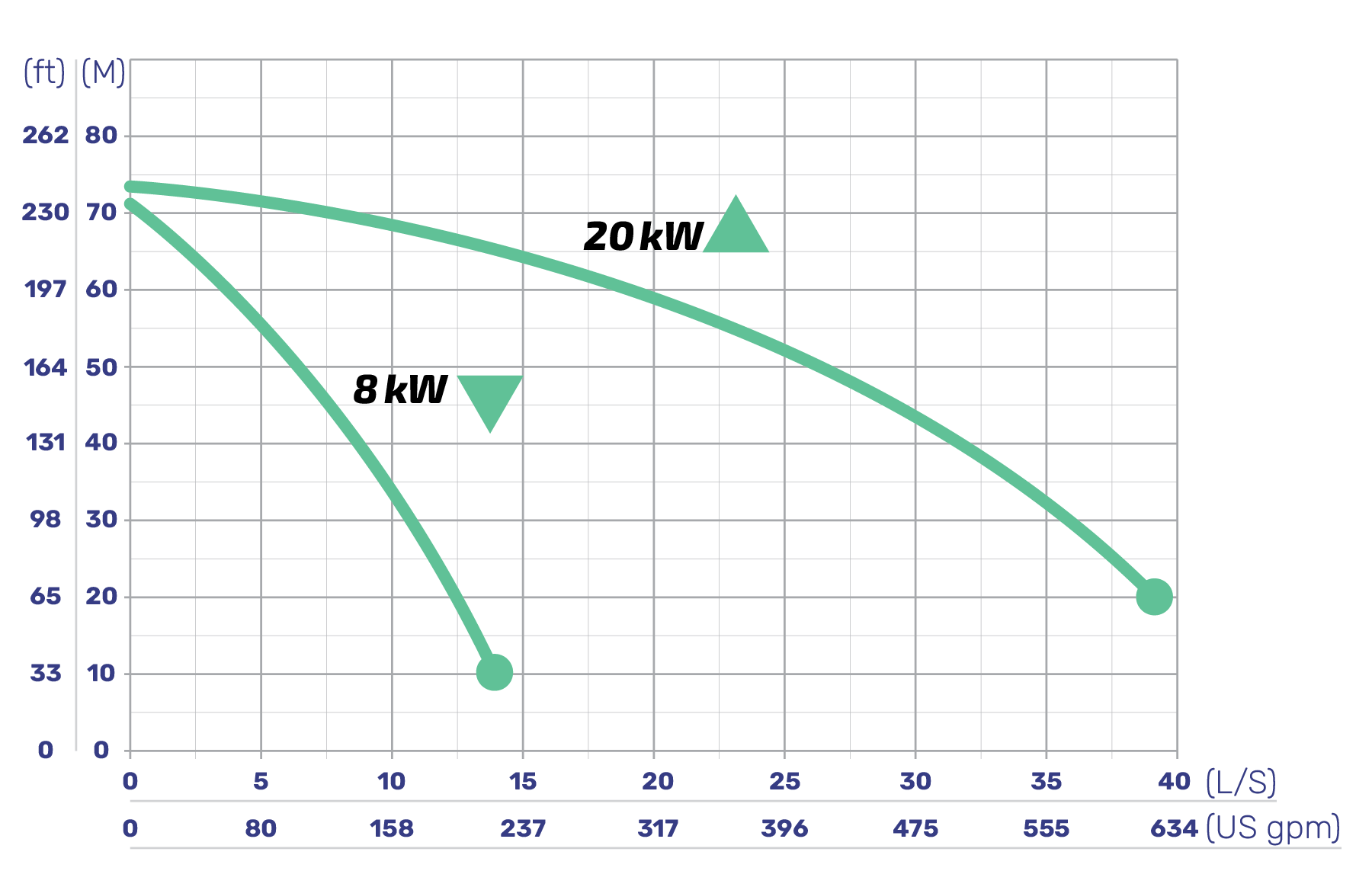

Pump Performance Curves (50 Hz & 60 Hz)

Guardian pump performance curves (50 Hz and 60 Hz)

Why The Guardian® Pump Range Is Better

Toughened - Metal Is Best

Internal components in the wetend are tough metal, not elastomer. Harsh operating environments quickly destroy elastomer components, while toughened steel components power on. Guardian is dry run tolerant and can run on the snore.

Productive - Less Downtime More Production

Guardian has been designed for tough environments, to keep on pumping when traditional dewatering pumps might fail.
Less mining downtime, more production.

Enquiry

Brochure

Specifications

Scroll sideways to see the complete table

Model	Power kW (hp)	Discharge mm (in)	Voltage	Solids Passage mm (in)	Max Head m (ft)	Max Flow l/s (US gpm)	Max Diameter mm (in)	Height mm (in)	Weight kg (lb)
GPM2A1708	5 (6.7)	50 (2)	415 V	8 (0.31)	41 (135)	15 (238)	350 (13.78)	550 (21.65)	68 (150)
GPM3A1708	5 (6.7)	50 (2)	1000 V	8 (0.31)	41 (135)	15 (238)	350 (13.78)	550 (21.65)	68 (150)
PEO857291	8 (10.7)	80 (3)	415 V	8 (0.31)	72 (236)	14 (222)	380 (14.96)	720 (28.35)	120 (265)
PE0857391	8 (10.7)	80 (3)	1000 V	8 (0.31)	72 (236)	14 (222)	380 (14.96)	720 (28.35)	120 (265)
PE0857491	8 (10.7)	80 (3)	600 V	8 (0.31)	72 (236)	14 (222)	380 (14.96)	720 (28.35)	120 (265)
PE2057291	20 (26.8)	100 (4)	415 V	8 (0.31)	74 (243)	39 (618)	520 (20.47)	765 (30.12)	210 (463)
PE2057391	20 (26.8)	100 (4)	1000 V	8 (0.31)	74 (243)	39 (618)	520 (20.47)	765 (30.12)	210 (463)
PE2057491	20 (26.8)	100 (4)	600 V	8 (0.31)	74 (243)	39 (618)	520 (20.47)	765 (30.12)	210 (463)

Metric values are shown first; approximate US customary equivalents are in parentheses. Flow uses US gallons per minute (US gpm). Horsepower values are calculated equivalents of kW, not separate motor ratings. Discharge sizes are nominal.

Motor Specifications
Pole	2-Pole
Insulation Class	Class F/H
Motor Power Details	1000V, 415V, 50Hz 480V, 600V & 1000V 60Hz
Max Liquid Temp	Fluid at 40° C
Max Submergence	22 m

Pump Specifications
Impeller	27 Chrome or CD4
Wear Parts	CD4
Mechanical Seal	Sic-Sic
Bearing	Heavy duty bearings
Outer Jacket	Aluminium or Stainless Steel
Shaft	Stainless Steel
