Raptor^® Submersible Dewatering Pumps

The old faithful in underground / mine dewatering. For underground mining, surface mining, construction and general applications.

Parts interchangeable with traditional OEM BIBO ranges.

Models: 5 kW | 8 kW | 20 kW

Enquiry

Brochure

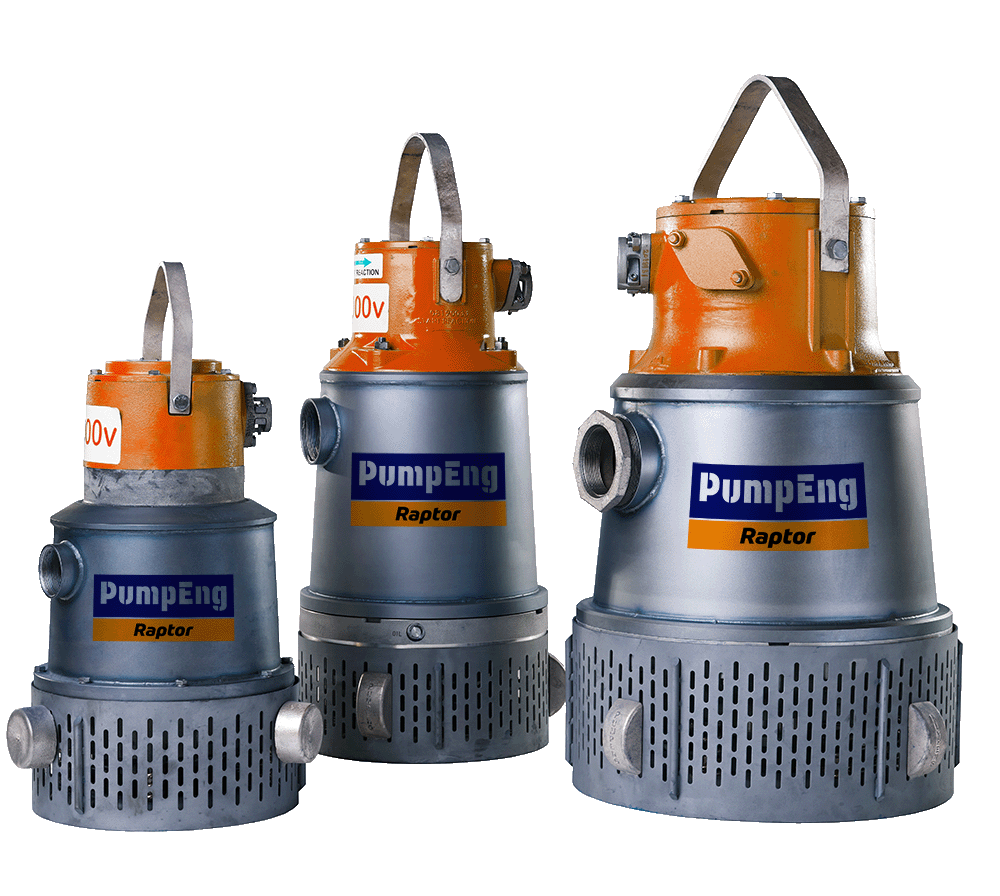

3 Raptor underground mine dewatering pumps in 5kw 8kw and 20kw

Benefits of Raptor® for Mining Operations

Performance

Increase mine performance, productivity and profit by reducing breakdowns and delays.

Safety

Reduce workplace hazards by reducing the number of breakdowns.

Cost

Reduce equipment lifecycle cost by increasing total pump life.

Range Overview

The Raptor^® submersible dewatering pump is available in the most commonly used underground mining sizes.

The Raptor^® range of submersible pumps & Parts has been developed for mining dewatering applications in consultation with end users within the mining industry.

PumpEng^® seeks to break the “take what you are given” design & manufacturing philosophy that exists with many large multinational pump manufacturers.

Our pump range is specifically designed for harsh mining conditions and as such they offer a multitude of operating and cost benefits.

PumpEng has experience troubleshooting problems and issues with submersible pumps.

Raptor Overview | Models | 5 kW | 8 kW | 20 kW | Parts | Enquiry

Models

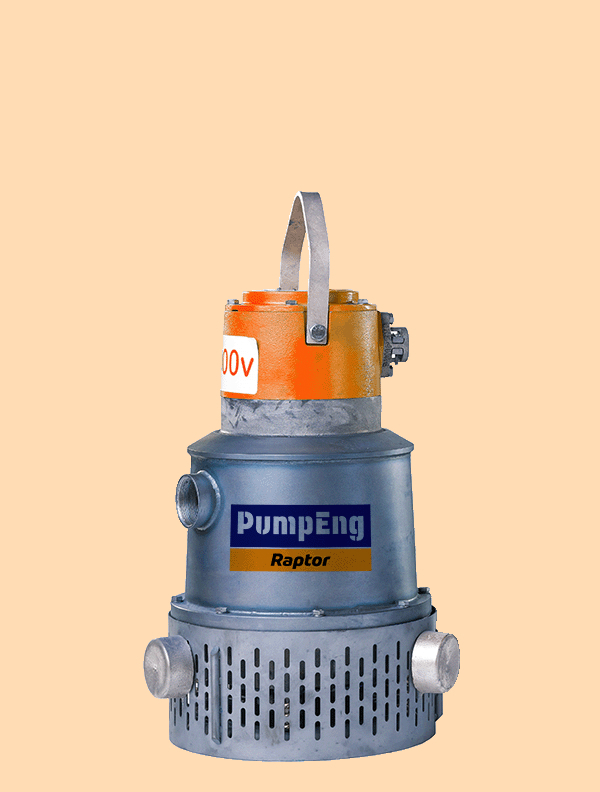

5 kW Raptor^®

The Raptor^® 5 kW High Head Dewatering submersible pump offers a multitude of operating and cost saving benefits

The Raptor^® 5 kW has a two part stator casing / junction box lid which reduces down time and on-going maintenance costs.

Raptor Overview | Models | 5 kW | 8 kW | 20 kW | Parts | Enquiry

8 kW Raptor^®

The 8 kW Raptor^® is our most commonly supplied underground dewatering pump. Specifically designed for harsh mining conditions, this pump offer a multitude of operating and cost benefits.

Raptor Overview | Models | 5 kW | 8 kW | 20 kW | Parts | Enquiry

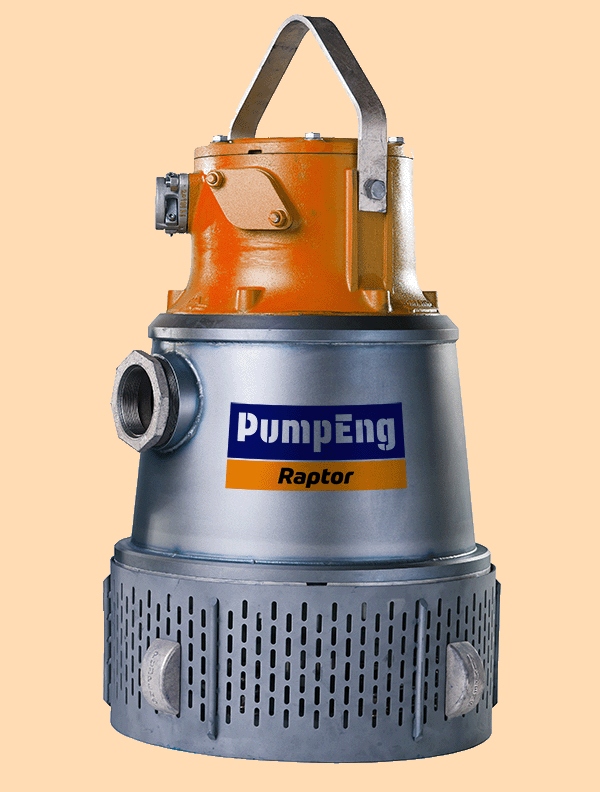

20kW Raptor^®

The Raptor 20 kW high head submersible dewatering pump is the 'old warrior' that has withstood the test of time.

There is no need to worry about supply or increasing spare parts inventory, all Raptor^® pumps and parts are ex stock.

Raptor Overview | Models | 5 kW | 8 kW | 20 kW | Parts | Enquiry

Power Curves (50 Hz & 60 Hz)

Specifications

Scroll sideways to see the complete table

Model	kW (Hp)	Discharge	Voltage (Hz)	Solids Passage in mm	Max Head in m (ft)	Max Flow l/s	Max Diameter mm	Height mm	Weight kg
PE0512291	5 (7)	50mm	415 (50)	8	41 (134)	15	350	550	57
PE0812291	8 (11)	80mm	415 (50)	8	72 (236)	14	380	720	105
PE2012291	20 (27)	100mm	415 (50)	8	74 (243)	39	520	765	185
PE0512391	5 (7)	50mm	1000 (50)	8	41 (134)	15	350	550	57
PE0812391	8 (11)	80mm	1000 (50)	8	72 (236)	14	380	720	105
PE2012391	20 (27)	100mm	1000 (50)	8	74 (243)	39	520	765	185
PE0512491	5 (7)	50mm	600 (60)	8	41 (134)	15	350	550	57
PE0812491	8 (11)	80mm	600 (60)	8	72 (236)	14	380	720	105
PE2012491	20 (27)	100mm	600 (60)	8	74 (243)	39	520	765	185
PE0812591	8 (11)	80mm	480 (60)	8	72 (236)	14	380	720	105
PE2012591	20 (27)	100mm	480 (60)	8	74 (243)	39	520	765	185

Motor Specifications
Pole	2-Pole
Insulation Class	Class F/H
Motor Power Details	1000V, 415V 50 Hz 480V, 600V, 1000V 60 Hz
Max Liquid Temp	Fluid at 40º C
Max Submergence	22 m

Pump Specifications
Impeller	27 Chrome or CD4
Wear Parts	Polyurethane Lined
Mechanical Seal	Sic - Sic
Bearing	Heavy Duty Bearings
Outer Jacket	Aluminium or Stainless Steel
Shaft	Stainless Steel
